Porthole UK & International Power and USB Charging

  • Fits in a standard 80mm grommet hole
  • Supports a range of international sockets
  • Choice of Twin port Type A & Type C USB Charger or Twin port 4A USB Charger
  • Designed to deflect spillages
  • Compact dimensions
  • Available in three colours, Black White & Grey with matching surround
  • Supplied with 1m mains lead to 3-pole connector
  • BS5733 - General requirements for electrical accessories

Product information

Porthole IV is the latest addition to our Porthole range. Porthole IV has been designed to support international sockets and USB charging, either our new Type A and Type C (Adaptive Fast Charge) USB Charger or our Twin Port 4A (When one USB device is charging it can draw up to 4 Amps when a second device is connected the 4 Amps is shared between the two devices) USB Charger. Both are capable of charging all leading smartphones and tablets.

All housed within the main body making the whole unit compact, easily retrofitted and can be connected to our underdesk power modules (Elite+, Conti, Rotasoc).



Porthole IV Options



Fixing

  • Fits in a standard 80mm grommet hole
  • Designed to fit any desk thickness between 12mm and 42mm
  • Easy to install, incorporates an under desk, hand tightened barrel nut to fix unit in place



Safety



Notes

  • Cables: White and grey modules are supplied with white cables and black modules are supplied with black cables.
  • Data Cables: CMD cannot accept any responsibility or liability for providing category 6 performance in products supplied. CMD cannot accept any responsibility or liability for providing HDMI performance in products supplied over 5m in length.
  • Fuses: Only accessible after removal of equipment plug.
  • Lead Lengths: All lead lengths are approximate and subject to tolerance. Lead lengths shown will be the conductor length and not the distance from the end of the module to the plug. For example, a 3m prewired power lead will be approximately 2.875m as 125mm will be internal for the termination. This is also applicable for data leads.
  • Data fascias may be subject to colour change.

Standard Products

UK Code Schuko Code Colour Description
90FC01BGST Black/Black Surround 1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 3.15A individually fused with 1m mains lead to 3 Pole connector
90FC02GGST Grey/Grey Surround 1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 3.15A individually fused with 1m mains lead to 3 Pole connector
90FC03WGST White/White Surround 1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 3.15A individually fused with 1m mains lead to 3 Pole connector
90FC04BGST Black/Black Surround 1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 5A individually fused with 1m mains lead to 3 Pole connector
90FC05GGST Grey/Grey Surround 1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 5A individually fused with 1m mains lead to 3 Pole connector
90FC06WGST White/White Surround 1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 5A individually fused with 1m mains lead to 3 Pole connector
90AC01BGST Black/Black Surround Porthole 4 Black - UK Socket 3.15A Fused, 1 x twin port Type A and C USB charger, 1m mains lead to Wieland
90AC02GGST Grey/Grey Surround Porthole 4 Grey - UK Socket 3.15A Fused, 1 x twin port Type A and C USB charger, 1m mains lead to Wieland
90AC03WGST White/White Surround Porthole 4 White - UK Socket 3.15A Fused, 1 x twin port Type A and C USB charger, 1m mains lead to Wieland
90FC07BGST Black/Black Surround 1 x Schuko Power Socket 1 x 2 Port 4A USB Socket Power socket shuttered with 1m mains lead to 3 Pole connector
90FC08GGST Grey/Grey Surround 1 x Schuko Power Socket 1 x 2 Port 4A USB Socket Power socket shuttered with 1m mains lead to 3 Pole connector
90FC09WGST White/White Surround 1 x Schuko Power Socket 1 x 2 Port 4A USB Socket Power socket shuttered with 1m mains lead to 3 Pole connector

1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 3.15A individually fused with 1m mains lead to 3 Pole connector

UK Part Number: 90FC01BGST

  • Socket individually fused to 3.15A
  • 1m Mains lead to 3 pole connector

Colour

Black/Black Surround

1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 3.15A individually fused with 1m mains lead to 3 Pole connector

UK Part Number: 90FC02GGST

  • Socket individually fused to 3.15A
  • 1m Mains lead to 3 pole connector

Colour

Grey/Grey Surround

1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 3.15A individually fused with 1m mains lead to 3 Pole connector

UK Part Number: 90FC03WGST

  • Socket individually fused to 3.15A
  • 1m Mains lead to 3 pole connector

Colour

White/White Surround

1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 5A individually fused with 1m mains lead to 3 Pole connector

UK Part Number: 90FC04BGST

Colour

Black/Black Surround

1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 5A individually fused with 1m mains lead to 3 Pole connector

UK Part Number: 90FC05GGST

Colour

Grey/Grey Surround

1 x UK Power Socket 1 x 2 Port 4A USB Socket Power socket 5A individually fused with 1m mains lead to 3 Pole connector

UK Part Number: 90FC06WGST

Colour

White/White Surround

Porthole 4 Black - UK Socket 3.15A Fused, 1 x twin port Type A and C USB charger, 1m mains lead to Wieland

UK Part Number: 90AC01BGST

Colour

Black/Black Surround

Porthole 4 Grey - UK Socket 3.15A Fused, 1 x twin port Type A and C USB charger, 1m mains lead to Wieland

UK Part Number: 90AC02GGST

Colour

Grey/Grey Surround

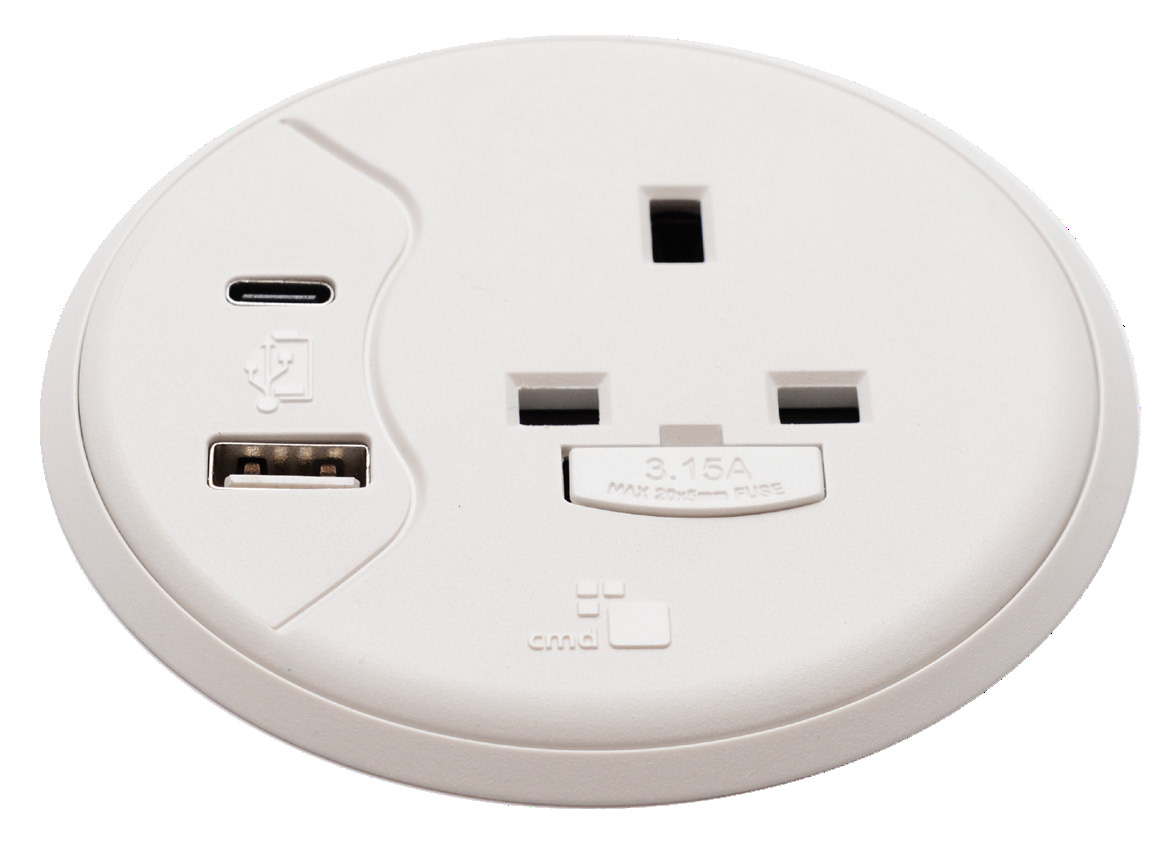

Porthole 4 White - UK Socket 3.15A Fused, 1 x twin port Type A and C USB charger, 1m mains lead to Wieland

UK Part Number: 90AC03WGST

Colour

White/White Surround

1 x Schuko Power Socket 1 x 2 Port 4A USB Socket Power socket shuttered with 1m mains lead to 3 Pole connector

Schuko Part Number: 90FC07BGST

Colour

Black/Black Surround

1 x Schuko Power Socket 1 x 2 Port 4A USB Socket Power socket shuttered with 1m mains lead to 3 Pole connector

Schuko Part Number: 90FC08GGST

Colour

Grey/Grey Surround

1 x Schuko Power Socket 1 x 2 Port 4A USB Socket Power socket shuttered with 1m mains lead to 3 Pole connector

Schuko Part Number: 90FC09WGST

Colour

White/White Surround
