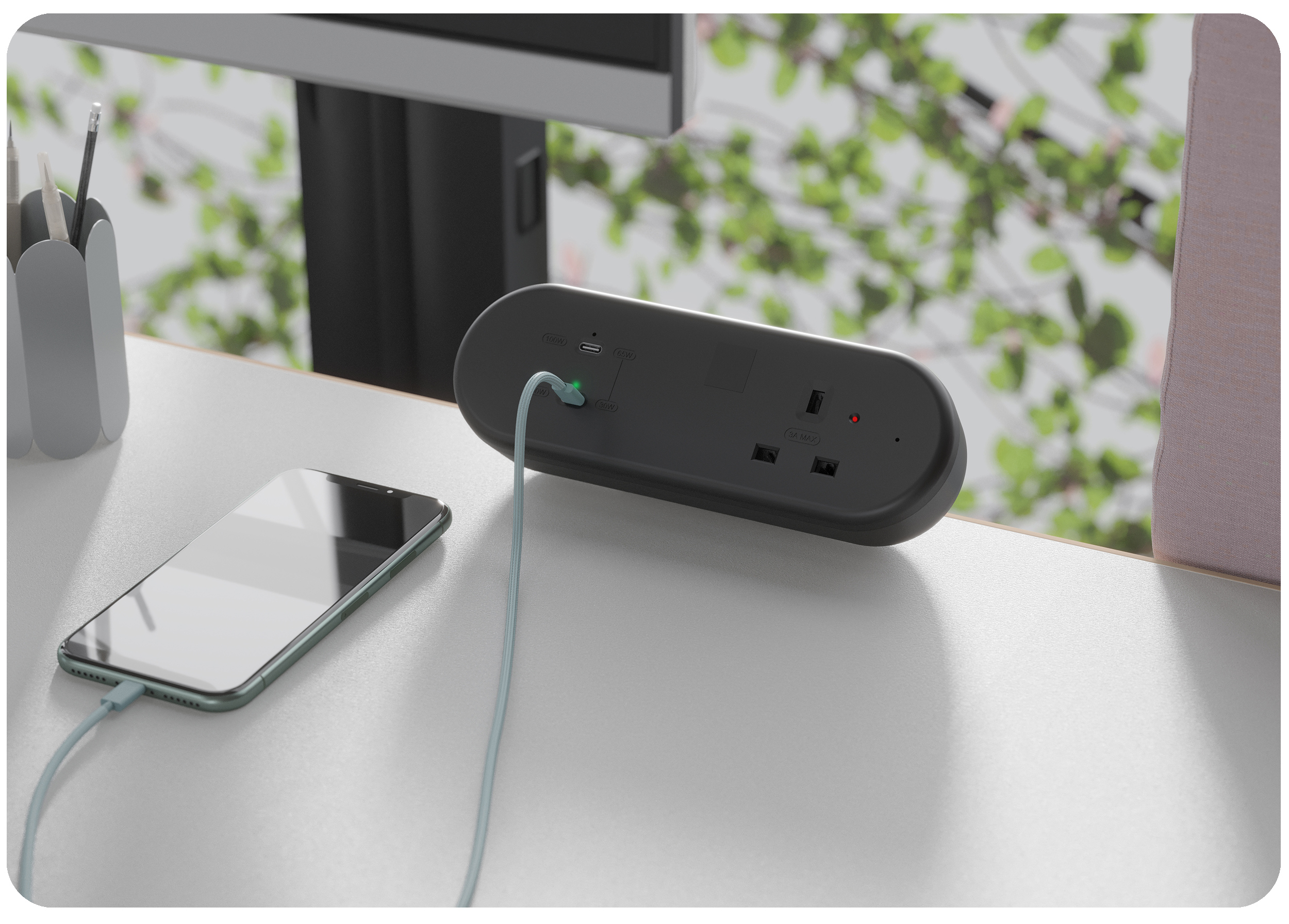

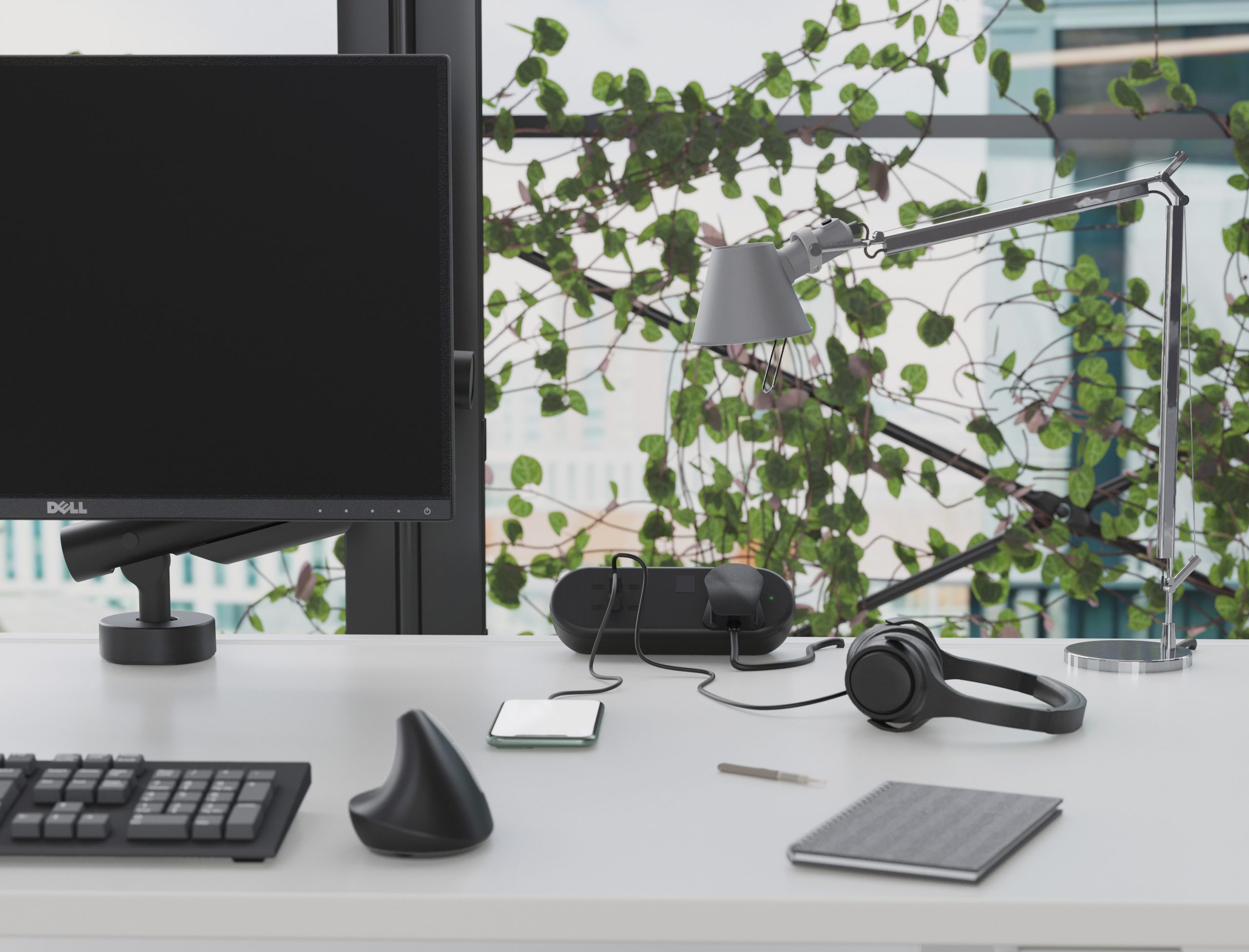

Capsule Fixed Format On Desk Power & USB Charging Module

3 Day Lead Time Available Now
2 x UK sockets with individual switches
2 x On/Off switches with neon indicators
Resettable 3A circuit breaker
Dual port Type A and C adaptive fast charger with LED indicators
Includes fixing clamp
2 x Empty keystones for retro-fitting Network sockets, HDMI, USB
Available in Black or White

Downloads (7)

Product information

FEATURES AND BENEFITS

Choice of black or white
2x UK sockets with individual on/off switches and 3A re-settable circuit breaker
Fully integrated Type A and C twin port USB, adaptive charger
2x data blanks that can be modified to include a range of keystone couplers
Supplied with C clamp fixing to fit desk thicknesses between 11mm and 30mm
USB Type A and C Charges are designed and tested to: EMC (EN61000/EN55022/EN55020/EN55024/EN55013/EN55014 and LVD (EN60950)

Adaptive Fast Charger Features

Capsule offers PD and QC2 adaptive charging which is fast charging.
It works on the USB-C connection by having:

5 Volts x 3.0 Amps,
9 Volts x 2 Amps and
12 Volts x 1.5 Amps option and
5 volt x 2 Amp (= 10 watt) option on the USB A connection

Notes

Cables: White modules are supplied with white cables and black modules are supplied with black cables.
Data Cables: CMD cannot accept any responsibility or liability for providing category 6 performance in products supplied. CMD cannot accept any responsibility or liability for providing HDMI performance in products supplied over 5m in length.
Fuses: Only accessible after removal of equipment plug.
Lead Lengths: All lead lengths are approximate and subject to tolerance. Lead lengths shown will be the conductor length and not the distance from the end of the module to the plug. For example, a 3m prewired power lead will be approximately 2.875m as 125mm will be internal for the termination. This is also applicable for data leads.
Data fascias may be subject to colour change.

Understanding USB Sockets

Check out our Advice Centre for more information on USB Charging

Is your office disability friendly?

If a disabled employee were to start working at your office today, would they be able to get straight to work without any modification to their work space?

Kitting out your office

HOW KITTING YOUR OFFICE OUT FOR HOT DESKING CAN INCREASE PRODUCTIVITY

UK Code	Schuko Code	Colour	Description
720001B	N/A	Black	2 x Power, 1 x Twin port Type A and C USB Charger, 2x Individual On/Off Switches, 2x Individual re-settable 3A circuit breakers, 1.5m mains lead to 3 pole connector
720001W	N/A	White	2 x Power, 1 x Twin port Type A and C USB Charger, 2x Individual On/Off Switches, 2x Individual re-settable 3A circuit breakers, 1.5m mains lead to 3 pole connector

UK Code

Schuko Code

Colour

Description

720001B

N/A

Black

2 x Power, 1 x Twin port Type A and C USB Charger, 2x Individual On/Off Switches, 2x Individual re-settable 3A circuit breakers, 1.5m mains lead to 3 pole connector

720001W

N/A

White

2 x Power, 1 x Twin port Type A and C USB Charger, 2x Individual On/Off Switches, 2x Individual re-settable 3A circuit breakers, 1.5m mains lead to 3 pole connector
