Linear Power and AV/Data Module

Linear Power and AV/Data Module

Linear can be customised to support a range of UK and international, USB charging and AV sockets and is fully compliant to current safety regulations.



Features include:



  • Choice of international power, data & media connectors to meet most specifications
  • UK Sockets are individually fused at 3.15A or 5A to allow compliance with BS 6396
  • Schuko sockets are shuttered and un-fused
  • Available with metal body
  • No visible screws
  • Available in white, black and grey options, or any combination of these colours, as required.
  • All standard options are supplied with a 1 metre mains lead to 3 pole connector
  • Complies with BS 5733 (UK) & IEC 60884-1 (Europe)

Standard Products

UK Code Schuko Code Colour Description
82AC0001 Black fascias & end caps (Silver body) Linear 1 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector
82AC0002 Grey fascias & end caps (Silver body) Linear 1 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector
82AC0003 White fascias & end caps (Silver body) Linear 1 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector
82AC0004 Black fascias & end caps (Silver body) Linear 2 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector
82AC0005 Grey fascias & end caps (Silver body) Linear 2 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector
82AC0006 White fascias & end caps (Silver body) Linear 2 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector
82050001 Black fascias & end caps (Silver body) Linear 1 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector
82050002 Grey fascias & end caps (Silver body) Linear 1 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector
82050003 White fascias & end caps (Silver body) Linear 1 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector
82050004 Black fascias & end caps (Silver body) Linear 2 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector
82050005 Grey fascias & end caps (Silver body) Linear 2 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector
82050006 White fascias & end caps (Silver body) Linear 2 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector
82000001 Black fascias & end caps (Silver body) Linear 2 x power, 1m mains lead to 3-pole connector
82000002 Grey fascias & end caps (Silver body) Linear 2 x power, 1m mains lead to 3-pole connector
82000003 White fascias & end caps (Silver body) Linear 2 x power, 1m mains lead to 3-pole connector
82000004 Black fascias & end caps (Silver body) Linear 2 x power, 2 x RJ45 Data Cat 6, 1m mains lead to 3-pole connector
82000005 Grey fascias & end caps (Silver body) Linear 2 x power, 2 x RJ45 Data Cat 6, 1m mains lead to 3-pole connector
82000006 White fascias & end caps (Silver body) Linear 2 x power, 2 x RJ45 Data Cat 6, 1m mains lead to 3-pole connector

Linear 1 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82AC0001

Colour

Black fascias & end caps (Silver body)

Linear 1 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82AC0002

Colour

Grey fascias & end caps (Silver body)

Linear 1 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82AC0003

Colour

White fascias & end caps (Silver body)

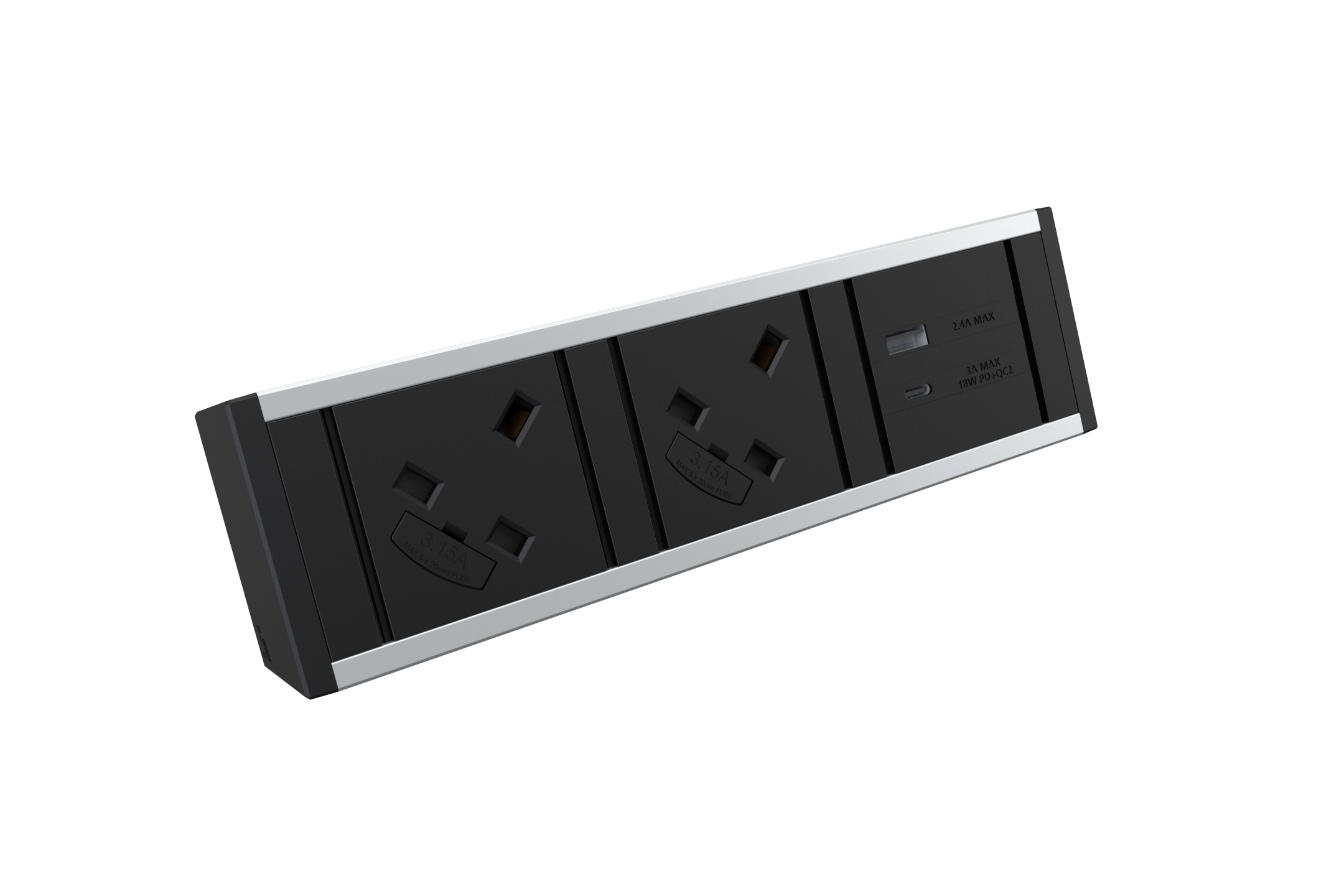

Linear 2 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82AC0004

Colour

Black fascias & end caps (Silver body)

Linear 2 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82AC0005

Colour

Grey fascias & end caps (Silver body)

Linear 2 x power, 1 x twin Type A + Type C USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82AC0006

Colour

White fascias & end caps (Silver body)

Linear 1 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82050001

Colour

Black fascias & end caps (Silver body)

Linear 1 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82050002

Colour

Grey fascias & end caps (Silver body)

Linear 1 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82050003

Colour

White fascias & end caps (Silver body)

Linear 2 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82050004

Colour

Black fascias & end caps (Silver body)

Linear 2 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82050005

Colour

Grey fascias & end caps (Silver body)

Linear 2 x power, 1 x twin 5A USB charger, 1m mains lead to 3-pole connector

UK Part Number: 82050006

Colour

White fascias & end caps (Silver body)

Linear 2 x power, 1m mains lead to 3-pole connector

UK Part Number: 82000001

Colour

Black fascias & end caps (Silver body)

Linear 2 x power, 1m mains lead to 3-pole connector

UK Part Number: 82000002

Colour

Grey fascias & end caps (Silver body)

Linear 2 x power, 1m mains lead to 3-pole connector

UK Part Number: 82000003

Colour

White fascias & end caps (Silver body)

Linear 2 x power, 2 x RJ45 Data Cat 6, 1m mains lead to 3-pole connector

UK Part Number: 82000004

Colour

Black fascias & end caps (Silver body)

Linear 2 x power, 2 x RJ45 Data Cat 6, 1m mains lead to 3-pole connector

UK Part Number: 82000005

Colour

Grey fascias & end caps (Silver body)

Linear 2 x power, 2 x RJ45 Data Cat 6, 1m mains lead to 3-pole connector

UK Part Number: 82000006

Colour

White fascias & end caps (Silver body)
