Lunar

2 column

WORKSTATION POWER

A fixed format in-desk power module offering 2x UK socket, 2x resettable 3A circuit breakers and a dual port Type A/C adaptive fast charger with a maximum PD65W for charging laptops, tablets and smart phones and a data keystone port that can be used with a range of data keystone couplers.

DOWNLOADS

DATASHEET

CAD

INSTRUCTIONS

Block

Collaborative power sharing

A fixed format in-desk power module, perfect for charging laptops, tablets
and smart phones.

Slide 4

Slide

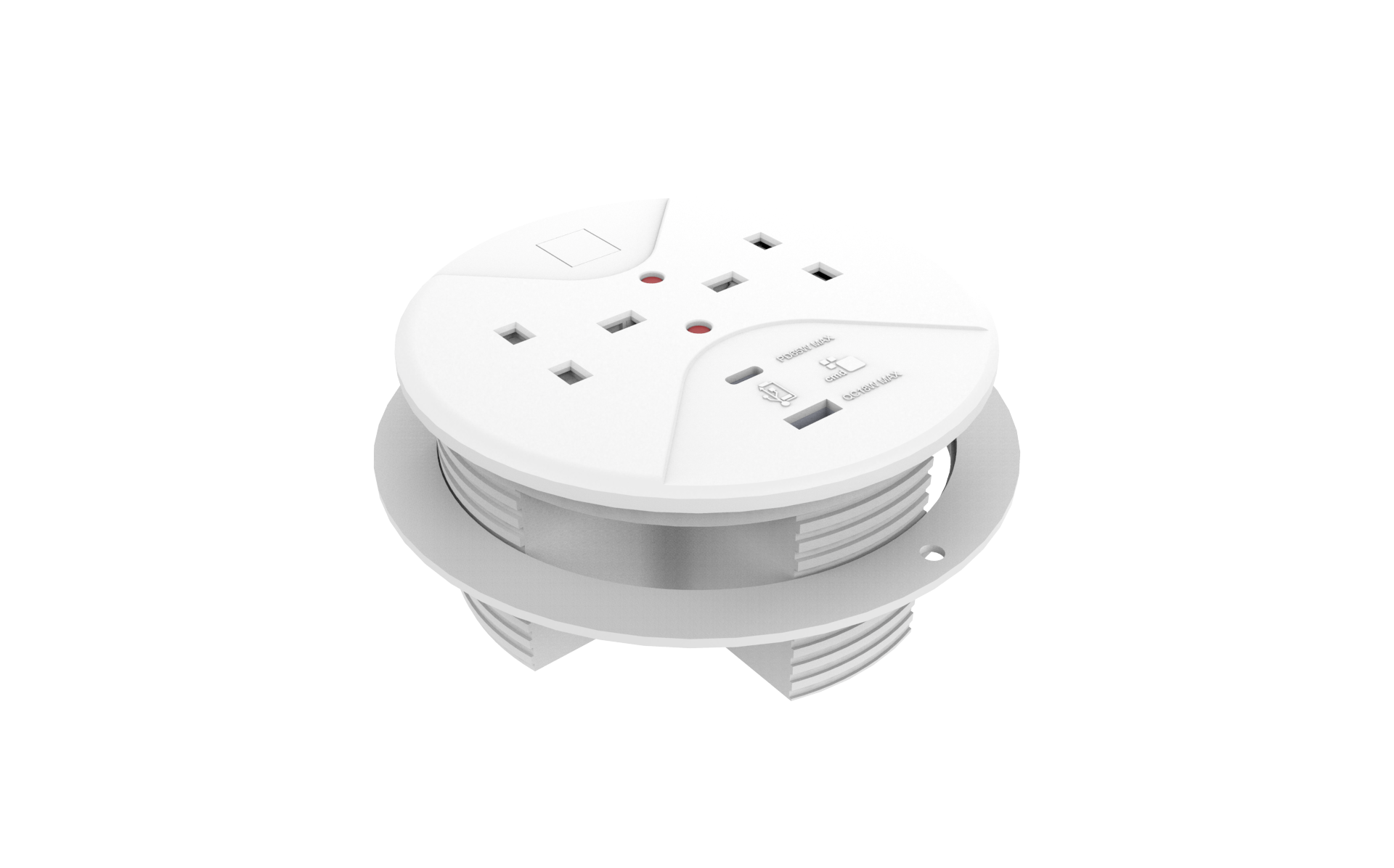

Lunar Collaborative
Power Sharing Module

FEATURES

– PD65W type A and C twin port USB adaptive charger

– 2x UK socket

– 2x 3A resettable circuit breaker

– 1x Data blank that can be replaced with a range of keystone couplers
– Can be fitted to a standard 127mm grommet hole to fit desk thicknesses between 13mm and 50mm

– Available in Black or White

– When using USB Type-A charging ports, some Huawei USB cables may not be compatible with certain Apple and Google devices. This may result in the device charging intermittently or not charging. If this occurs, please use the device manufacturer’s recommended or approved charging cable.

Block

LUNAR SPECIFICATIONS

Our range of technical documents are here to help you specify your next project.
