Rotasoc®

Rotasoc® is a modular and reconfigurable workstation power system that allows compliance with BS 7671.
- A comprehensive range of interchangeable modules.
- Ultrasonically sealed units.
- Fast-fit modular system.
- Socket modules allow unlimited socket rotation due to busbar.
- Lever latching for secure connection between modules.
- Concealed screw fixings.

IMAGES

ENQUIRE NOW

DOWNLOADS

REQUEST A DECLARATION OF CONFORMITY

Linear with 100W Joule charger

Block

Rotasoc has an intuitive, quick, and simple “fast-fit” installation method that reduces on-site labour costs.

Rotasoc can cater for Standard and Clean Earth (C/E) low noise systems and provides complete flexibility to your workstation layout. Available in both 32A and 16A versions Rotasoc has uniquely designed socket modules with 32A internal busbars that do not require internal wiring, offering unlimited 360º socket rotation.

Slide

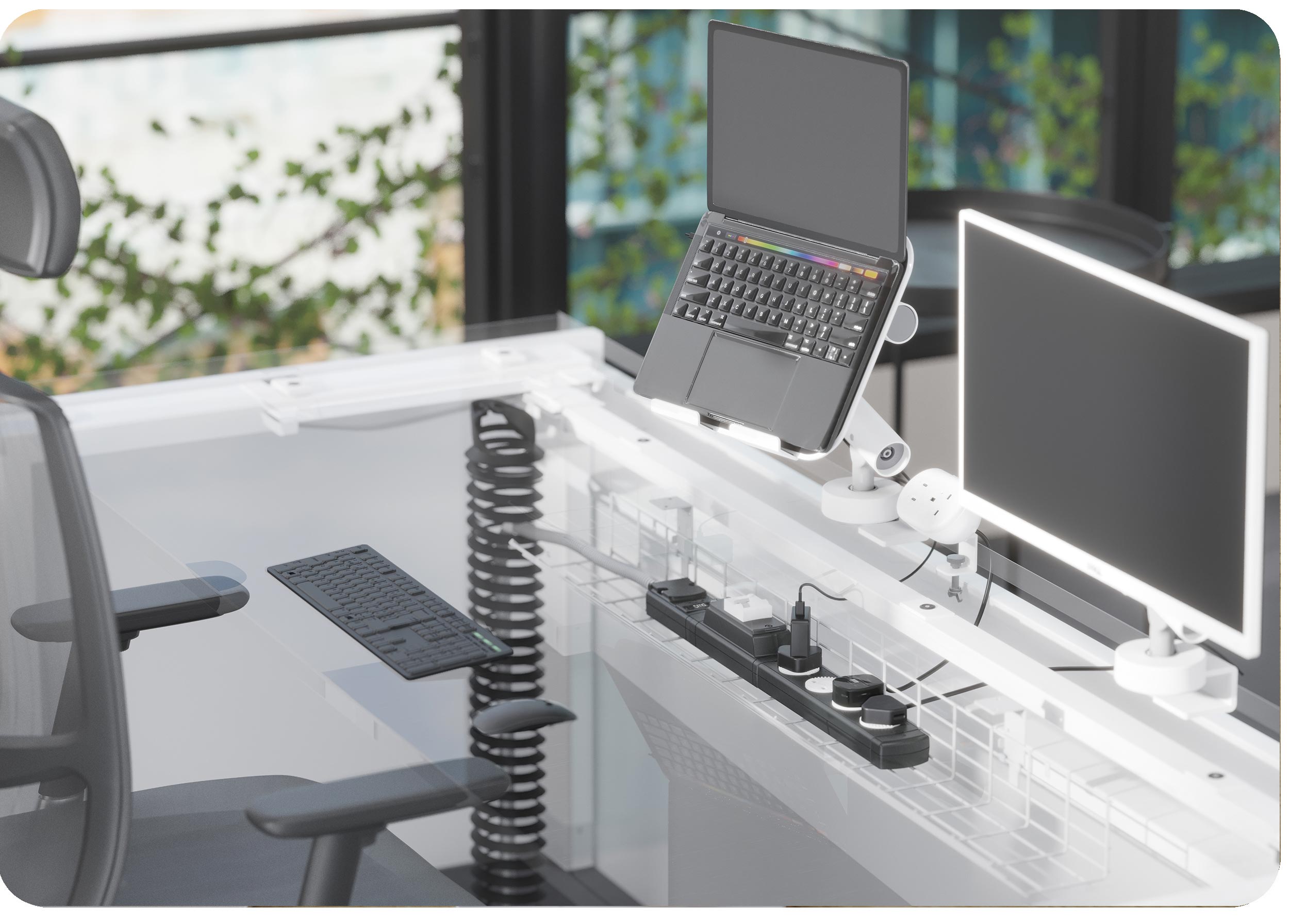

Workplace Power

- A comprehensive range of interchangeable modules
- Fast-fit modular system.
- Socket modules allow unlimited socket rotation due to busbar.

- Available with 3A and 5A individual
resettable thermal circuit breakers
- Lever latching for secure connection between modules.
- Concealed screw fixings.

Block

Compact, fast charging on desk power module for quick charging of laptops, smart phones and tablets.

A comprehensive range of interchangeable modules

RAB112

RAB005

RAB450

RAB402

RAB502

RAB503

RAB504

RAB710

RABX2241

RAB610

RAB670GST

Block

Our range of technical documents are here to help you specify your next project.

SPECIFICATIONS

- A comprehensive range of interchangeable modules.
- Ultrasonically sealed units.
- Fast-fit modular system.
- Socket modules allow unlimited socket rotation due to busbar.
- Lever latching for secure connection between modules.
- Concealed screw fixings.

Block

Contour Plastic Power Module

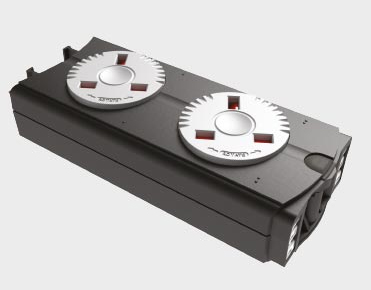

Standard Earth

32A INFEED

UK Code

Colour

Description

RAB301

32A Rewirable Infeed

RAB111

32A Infeed c/w 3m 32A Unfused
Betatrak Tap-off

RAB112

32A Infeed c/w 5m 32A Unfused
Betatrak Tap-off

RAB113

32A Infeed c/w 3m 13A Fused
Betatrak Tap-off

RAB114

32A Infeed c/w 5m 13A Fused
Betatrak Tap-off

RABX2165

32A Infeed c/w 3-pole 32A Black Neutrik Note: The total length of this unit is 143.2mm

RABX2165

32A Infeed c/w 5m 32A Unfused Betatrak SY Flexible Cable Tap-off

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

Contour Plastic Power Module

16A INFEED

UK Code

Colour

Description

RAB201

16A Rewirable Infeed

RAB003

16A Infeed c/w 3m Lead and
13A BS 1363 Plug

RAB005

16A Infeed c/w 5m Lead and
13A BS 1363 Plug

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

RCD/MCB/RCBO PROTECTION

UK Code

Colour

Description

RAB405

32A 30mA RCD

RAB420

16A MCB Type C

RAB450

16A 30mA RCBO Type C

RAB460

20A 30mA RCBO Type C

RAB470

32A 30mA RCBO Type C

Block

Contour Plastic Power Module

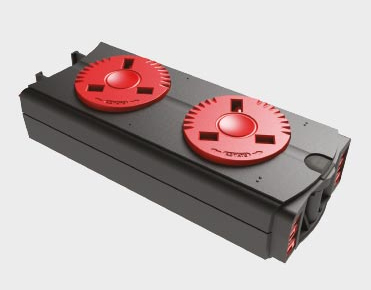

Clean Earth (C/E) Low Noise

32A INFEED

UK Code

Colour

Description

RAC301

32A Rewirable Infeed

RAC111

32A Infeed c/w 3m 32A Unfused
Betatrak Tap-off

RAC112

32A Infeed c/w 5m 32A Unfused
Betatrak Tap-off

RAC113

32A Infeed c/w 3m 13A Fused
Betatrak Tap-off

RAC114

32A Infeed c/w 5m 13A Fused
Betatrak Tap-off

RACX2134

32A Infeed c/w 3-pole 32A Black Neutrik Note: The total length of this unit is 143.2mm

RACX2095

32A Infeed c/w 5m 32A Unfused Betatrak SY Flexible Cable Tap-off

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

Contour Plastic Power Module

16A INFEED

UK Code

Colour

Description

RAC201

16A Rewirable Infeed

RAC003

16A Infeed c/w 3m Lead and
13A BS 1363 Plug

RAC005

16A Infeed c/w 5m Lead and
13A BS 1363 Plug

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.
