Conti

Features and Benefits

  • Conti is a completely configurable under desk power system.
  • Can utilise a choice of power and data options to fulfil most specifications.
  • Metal or plastic extrusion is available.
  • This power and data module  offers a high range of customised options for power/data/switching/protection and connections, as required
  • Independently certified to comply with BS 5733 (Metal Body Unit)



Product information

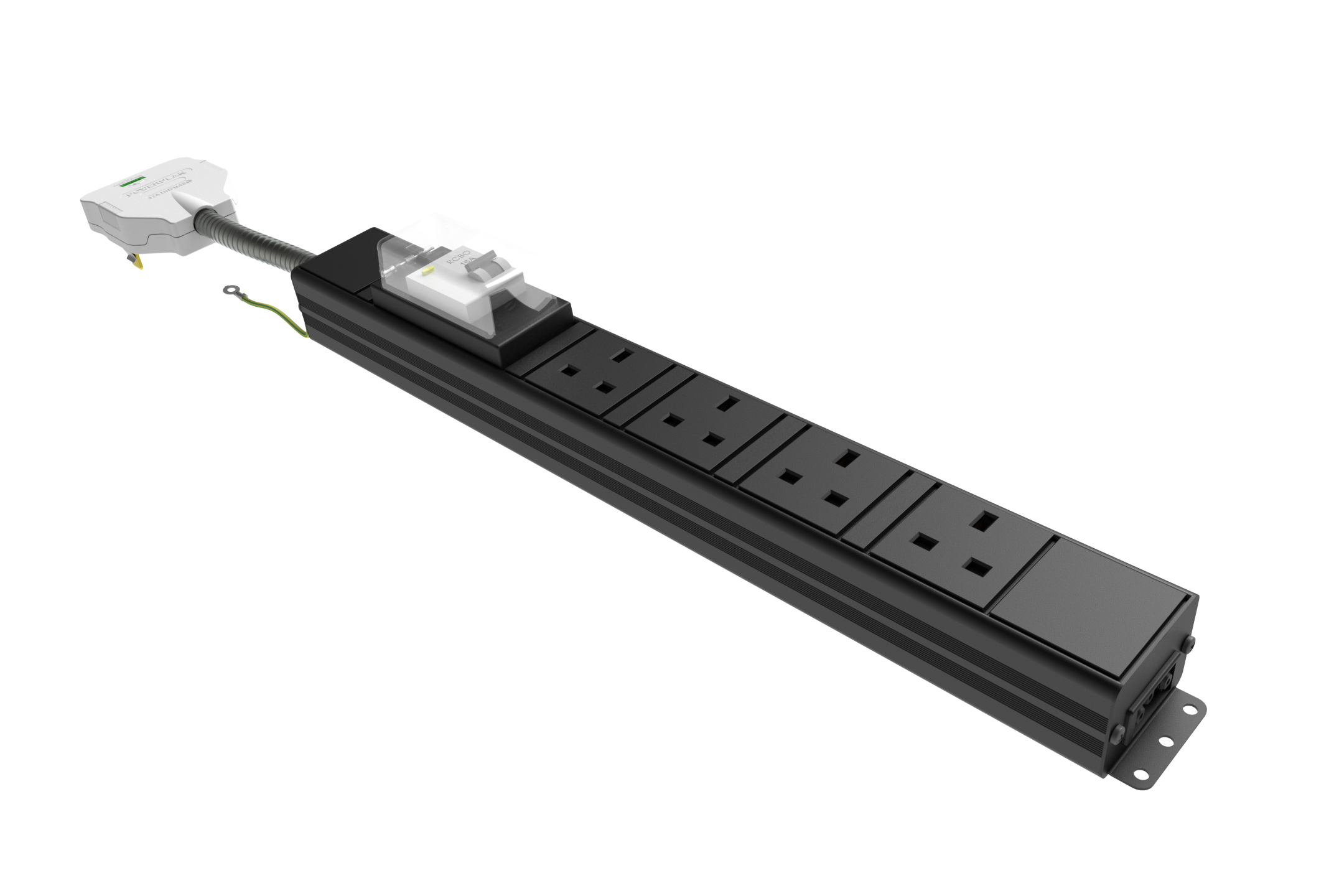

Conti modules, also known as the 86 series (metal) and 89 series (plastic) is a completely configurable under desk power system by CMD. This module has been designed for the number one purpose, meeting the increasing needs of todays modern work environment.
Conti allows for fast easy installation and has been designed with flexibility in mind meaning the options are endless.

Online we have allowed you to build our most popular plug and play models however if there is something you wish to add please give us a call and we will happily spec out your required module.



Product Options

Colours:

  • Grey/Silver
  • White/Silver
  • All Black

Construction
• Plastic (89 Series)
• Metal (86 Series)

Out-feeds
• 3 and 4 Pole Connector

Protection
• Std mains fuse (10A and 13A)
• MCB (various std ratings) – Grey,
White and Black shrouds available
• RCD/RCBO (various std ratings)
• Surge Filter
• Mains conditioning filter
• RFI filter

Switching
• Neon indicator
• Single pole (with or without neon)
• Double pole (with or without neon)

Data:  RJ11, RJ45 (Cat6 and Cat6a), LJ6C (telecom)

Sockets: Std UK 45° and 90°, Std UK fused 45° and 90° (3.15A and 5A), T-earth 90°, T-earth 90° fused (3.15A and 5A), Round-earth 90°, Round earth fused 45° and 90°, 3.15A and 5A, French / Belgian, Swiss, American, Danish, Indian 6A, IEC C13 and C19, German, Italian

Other: USB, 3.5mm Audio, Phono Socket, SVGA, S Video, HDMI, Co Axial, 9 Pin ‘D Type’, F Type Connector, BT Tel, RJ11 Tel Shuttered, RJ45 Cat6 and Cat6a, Ethernet BNC, Footprint

In-feeds: Tap Offs, Hard Wired to mains cable (3 and 4 pole) in 1.5mm2, 2.5mm2 and 4.0mm2, SY cable 1.5mm2 and 2.5mm2, 16mm and 20mm Flexible conduit (i.e. tap off), Connector block 16A and 32A (for self wiring), 3 Pole Connector Panel mount (3 and 4 pole), Neutrik Panel mount (20A and 32A), GST connectors



Safety



Standard Products

UK Code Schuko Code Colour Description
Standard Earth
86KS01 n/a Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, 4 x UK sockets, end cap
86KS03 n/a Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, switch, 4 x UK sockets, end cap
86KS02 n/a Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, 6 x UK sockets, end cap
86KS04 n/a Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, switch, 6 x UK sockets, end cap
86KS05 n/a Standard 5m 32A Unfused Tap Off BSX3325H, 16A 30m RCBO, 4 x UK sockets, end cap
86KS06 n/a Standard 5m 32A Unfused Tap Off BSX3325H, 16A 30m RCBO, 6 x UK sockets, end cap
Clean Earth
86KC01 n/a Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, 4 x UK sockets, end cap
86KC03 n/a Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, switch, 4 x UK sockets, end cap
86KC02 n/a Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, 6 x UK sockets, end cap
86KC04 n/a Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, switch, 6 x UK sockets, end cap
86KC05 n/a Clean Earth 5m 32A Unfused Tap Off BCX4325H, 16A 30m RCBO, 4 x UK sockets, end cap
86KC06 n/a Clean Earth 5m 32A Unfused Tap Off BCX4325H, 16A 30m RCBO, 6 x UK sockets, end cap

UK Part Number: Standard Earth

Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, 4 x UK sockets, end cap

UK Part Number: 86KS01

Schuko Part Number: n/a

Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, switch, 4 x UK sockets, end cap

UK Part Number: 86KS03

Schuko Part Number: n/a

Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, 6 x UK sockets, end cap

UK Part Number: 86KS02

Schuko Part Number: n/a

Standard 5m 32A Unfused Tap Off BSX3325H, 13A Fuse, switch, 6 x UK sockets, end cap

UK Part Number: 86KS04

Schuko Part Number: n/a

Standard 5m 32A Unfused Tap Off BSX3325H, 16A 30m RCBO, 4 x UK sockets, end cap

UK Part Number: 86KS05

Schuko Part Number: n/a

Standard 5m 32A Unfused Tap Off BSX3325H, 16A 30m RCBO, 6 x UK sockets, end cap

UK Part Number: 86KS06

Schuko Part Number: n/a

UK Part Number: Clean Earth

Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, 4 x UK sockets, end cap

UK Part Number: 86KC01

Schuko Part Number: n/a

Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, switch, 4 x UK sockets, end cap

UK Part Number: 86KC03

Schuko Part Number: n/a

Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, 6 x UK sockets, end cap

UK Part Number: 86KC02

Schuko Part Number: n/a

Clean Earth 5m 32A Unfused Tap Off BCX4325H, 13A Fuse, switch, 6 x UK sockets, end cap

UK Part Number: 86KC04

Schuko Part Number: n/a

Clean Earth 5m 32A Unfused Tap Off BCX4325H, 16A 30m RCBO, 4 x UK sockets, end cap

UK Part Number: 86KC05

Schuko Part Number: n/a

Clean Earth 5m 32A Unfused Tap Off BCX4325H, 16A 30m RCBO, 6 x UK sockets, end cap

UK Part Number: 86KC06

Schuko Part Number: n/a
