Surface Power, USB Charging, Data & Media

  • Configurable to include, Power, Data & Media sockets
  • Available in four cut-out sizes for desk mounting (69mm x 163mm (A); 69mm x 263mm (B); 69mm x 363mm (C); 69mm x 463mm (D))
  • Galvanised steel frame available in a choice of three colours (RAL 9005, RAL 7004, RAL 9010)
  • Stainless steel frame also available
  • Suitable for surface thickness between 18.0mm to 37.0mm

Product information

Surface is a new module that has been designed to fit the horizontal surface of any furniture. It features a seamless surround and socket faces that stand proud of the furniture, protecting them from accidental spillages making it the ideal choice for offices and commercial environments.

It can support the following options;

  • Power sockets (UK, Schuko, plus much more)
  • 5Amp USB charging
  • Twin port Type A and C USB charger
  • Data transfer (RJ45 CAT6, CAT6A, USB, etc.)
  • Media sockets (HDMI, Display Port, etc)



Product Options

Available in a choice of three colours.

  • Black- RAL 9005
  • Grey – RAL 7004
  • White – RAL 9010
  • Stainless Steel



Fixing

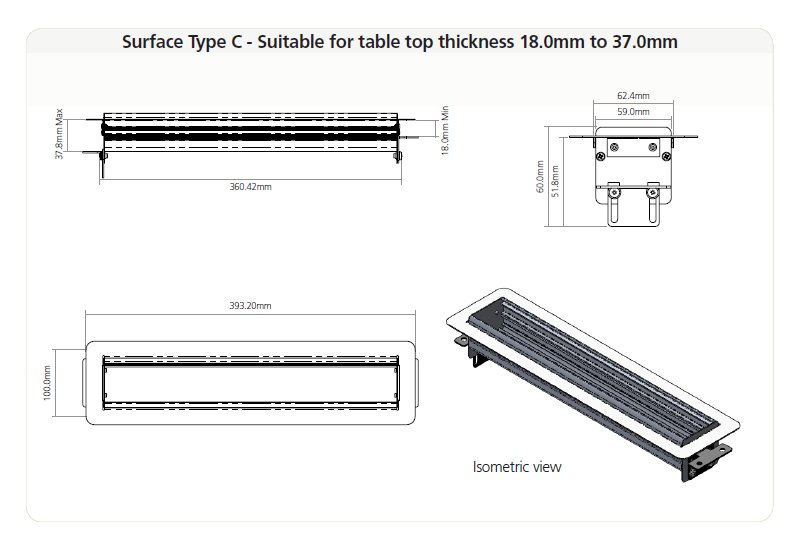

When installing Surface into a desk there is a choice of 4 cut-out sizes (dependent on your required specification). These cut-out sizes are as follows;



The Power Module has been designed to fit desk thicknesses of between 18mm and 37mm as standard but a bespoke solution can be developed for other thicknesses if required. Please ask a member of our sales team.

If you are looking for a power module that you could mount in a working wall or soft seating area, our Face module may suit your needs better.



Safety

Raised power sockets protect them from spillages. All our UK power socket versions feature individual fuses rated at either 3.15A or 5A allowing the unit to be compliant with BS 6396 and also complies with BS 5733.

Once Surface has been positioned on the desk it can be secured from above and locked into position using under desk fixings.



Notes

  • Cables: White and grey modules are supplied with white cables and black modules are supplied with black cables.
  • Data Cables: CMD cannot accept any responsibility or liability for providing category 6 performance in products supplied. CMD cannot accept any responsibility or liability for providing HDMI performance in products supplied over 5m in length.
  • Fuses: Only accessible after removal of equipment plug.
  • Lead Lengths: All lead lengths are approximate and subject to tolerance. Lead lengths shown will be the conductor length and not the distance from the end of the module to the plug. For example, a 3m prewired power lead will be approximately 2.875m as 125mm will be internal for the termination. This is also applicable for data leads.
  • Data fascias may be subject to colour change.

Standard Products

UK Code Schuko Code Colour Description
77050001 Please call Black In Desk Surface Module - Black - 1 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm
77050002 Please call Grey In Desk Surface Module - Grey - 1 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm
77050003 Please call White In Desk Surface Module - White - 1 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm
77050004 Please call Black In Desk Surface Module - Black - 2 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm
77050005 Please call Grey In Desk Surface Module - Grey - 2 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm
77050006 Please call White In Desk Surface Module - White - 2 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm
77050007 Please call Black In Desk Surface Mod - Black - 2 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1MJ, 1VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm
77050008 Please call Grey In Desk Surface Mod - Grey - 2 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm
77050009 Please call White In Desk Surface Mod - White - 2 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm
77050010 Please call Black In Desk Surface Mod - Black - 4 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 USB, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm
77050011 Please call Grey In Desk Surface Mod - Black - 4 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 USB, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm
77050012 Please call White In Desk Surface Mod - Black - 4 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 USB, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm
77AC0001 Please call Black In Desk Surface Module - Black - 1 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm
77AC0002 Please call Grey In Desk Surface Module - Grey - 1 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm
77AC0003 Please call White In Desk Surface Module - White - 1 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm
77AC0004 Please call Black In Desk Surface Module - Black - 2 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm
77AC0005 Please call Grey In Desk Surface Module - Grey - 2 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm
77AC0006 Please call White In Desk Surface Module - White - 2 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm
77AC0007 Please call Black In Desk Surface Mod - Black - 2 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm
77AC0008 Please call Grey In Desk Surface Mod - Grey - 2 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm
77AC0009 Please call White In Desk Surface Mod - White - 2 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm
77AC0010 Please call Black In Desk Surface Mod - Black - 3 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm
77AC0011 Please call Grey In Desk Surface Mod - Grey - 3 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm
77AC0012 Please call White In Desk Surface Mod - White - 3 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm
Data Cables
161713 3m Cat 6 data cable. Male to male connector.
161239 2m USB data cable. Male to male connector.
161718 2m HDMI data cable. Male to male connector.

In Desk Surface Module - Black - 1 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm

UK Part Number: 77050001

Schuko Part Number: Please call

Colour

Black

In Desk Surface Module - Grey - 1 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm

UK Part Number: 77050002

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Module - White - 1 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm

UK Part Number: 77050003

Schuko Part Number: Please call

Colour

White

In Desk Surface Module - Black - 2 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm

UK Part Number: 77050004

Schuko Part Number: Please call

Colour

Black

In Desk Surface Module - Grey - 2 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm

UK Part Number: 77050005

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Module - White - 2 power, 1 twin 5A USB Charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm

UK Part Number: 77050006

Schuko Part Number: Please call

Colour

White

In Desk Surface Mod - Black - 2 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1MJ, 1VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm

UK Part Number: 77050007

Schuko Part Number: Please call

Colour

Black

In Desk Surface Mod - Grey - 2 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm

UK Part Number: 77050008

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Mod - White - 2 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm

UK Part Number: 77050009

Schuko Part Number: Please call

Colour

White

In Desk Surface Mod - Black - 4 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 USB, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm

UK Part Number: 77050010

Schuko Part Number: Please call

Colour

Black

In Desk Surface Mod - Black - 4 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 USB, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm

UK Part Number: 77050011

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Mod - Black - 4 power, 1 twin 5A USB Charger - 2 RJ45 Cat 6, 1 HDMI, 1 USB, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm

UK Part Number: 77050012

Schuko Part Number: Please call

Colour

White

In Desk Surface Module - Black - 1 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm

UK Part Number: 77AC0001

Schuko Part Number: Please call

Colour

Black

In Desk Surface Module - Grey - 1 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm

UK Part Number: 77AC0002

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Module - White - 1 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 163mm x 69mm

UK Part Number: 77AC0003

Schuko Part Number: Please call

Colour

White

In Desk Surface Module - Black - 2 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm

UK Part Number: 77AC0004

Schuko Part Number: Please call

Colour

Black

In Desk Surface Module - Grey - 2 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm

UK Part Number: 77AC0005

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Module - White - 2 power 1 x twin USB Type A + Type C charger - 1 metre mains lead to 3 pole connector, Product cut-out dimensions: 263mm x 69mm

UK Part Number: 77AC0006

Schuko Part Number: Please call

Colour

White

In Desk Surface Mod - Black - 2 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm

UK Part Number: 77AC0007

Schuko Part Number: Please call

Colour

Black

In Desk Surface Mod - Grey - 2 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm

UK Part Number: 77AC0008

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Mod - White - 2 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 363mm x 69mm

UK Part Number: 77AC0009

Schuko Part Number: Please call

Colour

White

In Desk Surface Mod - Black - 3 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm

UK Part Number: 77AC0010

Schuko Part Number: Please call

Colour

Black

In Desk Surface Mod - Grey - 3 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm

UK Part Number: 77AC0011

Schuko Part Number: Please call

Colour

Grey

In Desk Surface Mod - White - 3 power, 1 x twin USB Type A + Type C charger - 2 RJ45 Cat 6, 1 HDMI, 1 MJ, 1 VGA, 1 m mains lead-3 pole connector, Product cut-out dimensions: 463mm x 69mm

UK Part Number: 77AC0012

Schuko Part Number: Please call

Colour

White

UK Part Number: Data Cables

3m Cat 6 data cable. Male to male connector.

UK Part Number: 161713

2m USB data cable. Male to male connector.

UK Part Number: 161239

2m HDMI data cable. Male to male connector.

UK Part Number: 161718
