Affinity Power, USB Charging & Data

Features and Benefits

  • Grey fascia end caps and an anodised aluminium body
  • Power and data cables all exit from under the side of the unit
  • All UK power socket versions feature individual fuses
  • Comply with BS 6396:2008
  • Unit complies with BS 5733

Product information

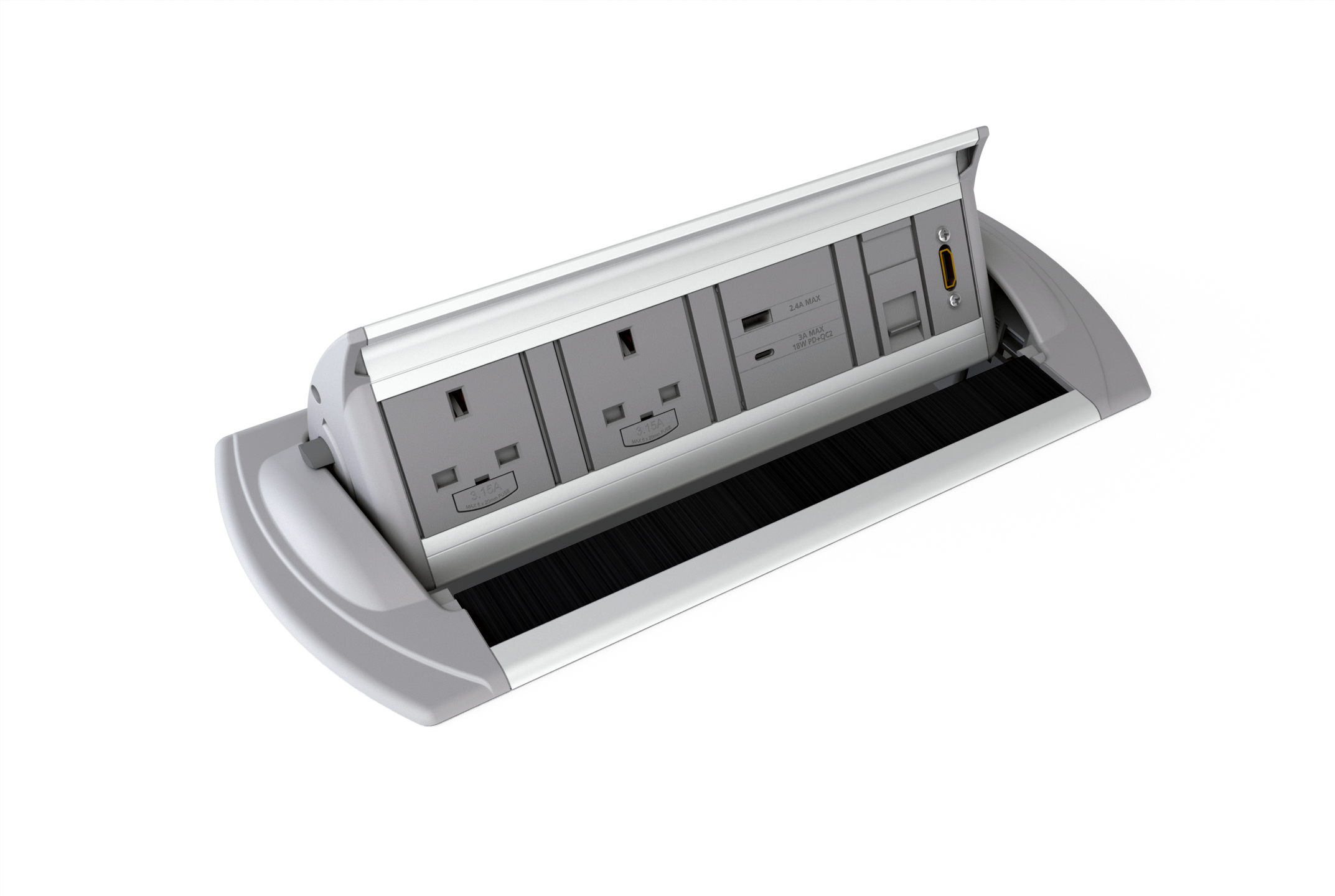

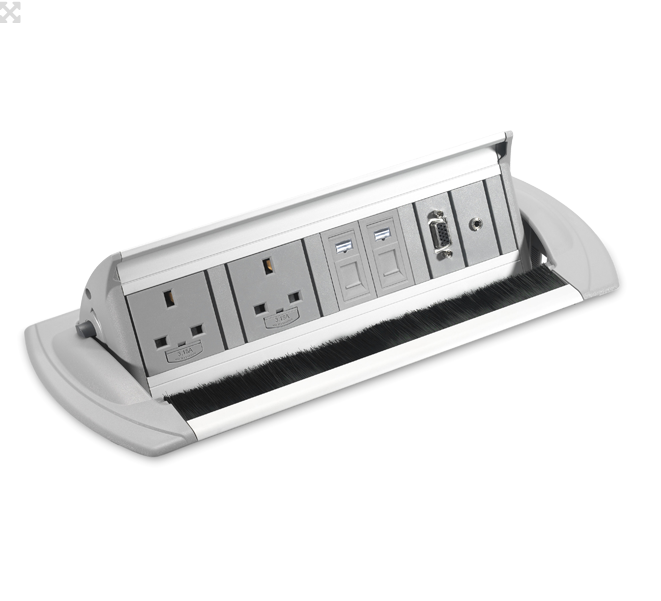

The Affinity power module offers the user easy to use power and data when required whilst ensuring you have an uncluttered working environment.

Whilst the Affinity power module is a concealed unit it can function perfectly in both the open or closed position.

The Affinity power module offers you a wide variety of socket options ranging from data and audio to power or USB

Note: The Affinity power module is provided with 13A UK plug



Product Options

  • Power and data cables all exit from under the side of the unit
  • All UK sockets feature integral fuses. Choice of 3.15A or 5A fuses are available



Fixing

Designed to fit desk thicknesses ranging from 10mm to 50mm. Clamps into rectangular location hole using ratchet clamps



Safety



Notes

  • Cables: White and grey modules are supplied with white cables and black modules are supplied with black cables.
  • Data Cables: CMD cannot accept any responsibility or liability for providing category 6 performance in products supplied. CMD cannot accept any responsibility or liability for providing HDMI performance in products supplied over 5m in length.
  • Fuses: Only accessible after removal of equipment plug.
  • Lead Lengths: All lead lengths are approximate and subject to tolerance. Lead lengths shown will be the conductor length and not the distance from the end of the module to the plug. For example, a 3m prewired power lead will be approximately 2.875m as 125mm will be internal for the termination. This is also applicable for data leads.
  • Data fascias may be subject to colour change.

Standard Products

UK CodeSchuko CodeColourDescription
85PG01Grey Fascias
Anodised Silver Body
2 x power, 3m mains lead to 13A UK plug, Product cut-out dimensions: 132mm x 161.5mm
85PG03Grey Fascias
Anodised Silver Body
4 x power, 3m mains lead to 13A UK plug, Product cut-out dimensions: 132mm x 286.5mm
85U490Grey Fascias
Anodised Silver Body
2 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 3m data leads, Product cut-out dimensions: 132mm x 286.5mm
85U493Grey Fascias
Anodised Silver Body
4 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 3m data leads, Product cut-out dimensions: 132mm x 361.5mm
85HG02Grey Fascias
Anodised Silver Body
2 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 1 x VGA, 1 x mini jack, 3m data and A/V leads, Product cut-out dimensions: 132mm x 299mm
85AV52050Grey Fascias
Anodised Silver Body
2 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 1 x VGA, 1 x mini jack, 1 x HDMI, 3m data and A/V leads, Product cut-out dimensions: 132mm x 324mm
85050001Grey Fascias
Anodised Silver Body
2 x power, 3m mains lead to 13A UK plug, 1 x Twin port 5Amp USB Charger, Product cut-out dimensions: 132mm x 224mm
85050002Grey Fascias
Anodised Silver Body
2 x power, 3m mains lead to 13A UK plug, 1 x Twin port 5Amp USB Charger, 2 x RJ45 data Cat6, 3m data leads, Product cut-out dimensions: 132mm x 286.5mm

2 x power, 3m mains lead to 13A UK plug, Product cut-out dimensions: 132mm x 161.5mm

UK Part Number: 85PG01

  • Sockets individually fused to 3.15A
  • 3m Mains lead to 13A UK Plug

Colour

Grey Fascias
Anodised Silver Body

4 x power, 3m mains lead to 13A UK plug, Product cut-out dimensions: 132mm x 286.5mm

UK Part Number: 85PG03

  • Sockets individually fused to 3.15A
  • 3m Mains lead to 13A UK Plug

Colour

Grey Fascias
Anodised Silver Body

2 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 3m data leads, Product cut-out dimensions: 132mm x 286.5mm

UK Part Number: 85U490

  • Sockets individually fused to 3.15A
  • CAT6 Data Sockets with 3m data leads
  • 3m Mains lead to 13A UK Plug
  • Cutout []

Colour

Grey Fascias
Anodised Silver Body

4 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 3m data leads, Product cut-out dimensions: 132mm x 361.5mm

UK Part Number: 85U493

  • Sockets individually fused to 3.15A
  • CAT6 Data Sockets with 3m data leads
  • 3m Mains lead to 13A UK Plug
  • Cutout []

Colour

Grey Fascias
Anodised Silver Body

2 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 1 x VGA, 1 x mini jack, 3m data and A/V leads, Product cut-out dimensions: 132mm x 299mm

UK Part Number: 85HG02

  • Sockets individually fused to 3.15A
  • CAT6 Data Sockets with 3m data leads
  • 3m Mains lead to 13A UK Plug
  • Cutout []

Colour

Grey Fascias
Anodised Silver Body

2 x power, 3m mains lead to 13A UK plug, 2 x RJ45 data Cat6, 1 x VGA, 1 x mini jack, 1 x HDMI, 3m data and A/V leads, Product cut-out dimensions: 132mm x 324mm

UK Part Number: 85AV52050

  • Sockets individually fused to 3.15A
  • CAT6 Data Sockets with 3m data leads
  • 3m Mains lead to 13A UK Plug
  • Cutout []

Colour

Grey Fascias
Anodised Silver Body

2 x power, 3m mains lead to 13A UK plug, 1 x Twin port 5Amp USB Charger, Product cut-out dimensions: 132mm x 224mm

UK Part Number: 85050001

Colour

Grey Fascias
Anodised Silver Body

2 x power, 3m mains lead to 13A UK plug, 1 x Twin port 5Amp USB Charger, 2 x RJ45 data Cat6, 3m data leads, Product cut-out dimensions: 132mm x 286.5mm

UK Part Number: 85050002

Colour

Grey Fascias
Anodised Silver Body
