25 Series Floor Box

The 25 Series floor box is suitable for raised floor applications and is divided in to 3 or 4 compartments. The 25 Series floor boxes are designed for use in commercial environments and provide an efficient fast-fit on site installation and ease of access to power sockets and data.

IMAGES

25 Series Floor Box Enquiry

DOWNLOADS

DATASHEET

Request a Declaration of Conformity

Installation, User and Care Guide

IMAGES

Block

Tool free fixing mechanism for fast-fit on site installation.

Low profile floor box surround and non-trip cable outlet brackets designed to comply with BS EN 61534.

Block

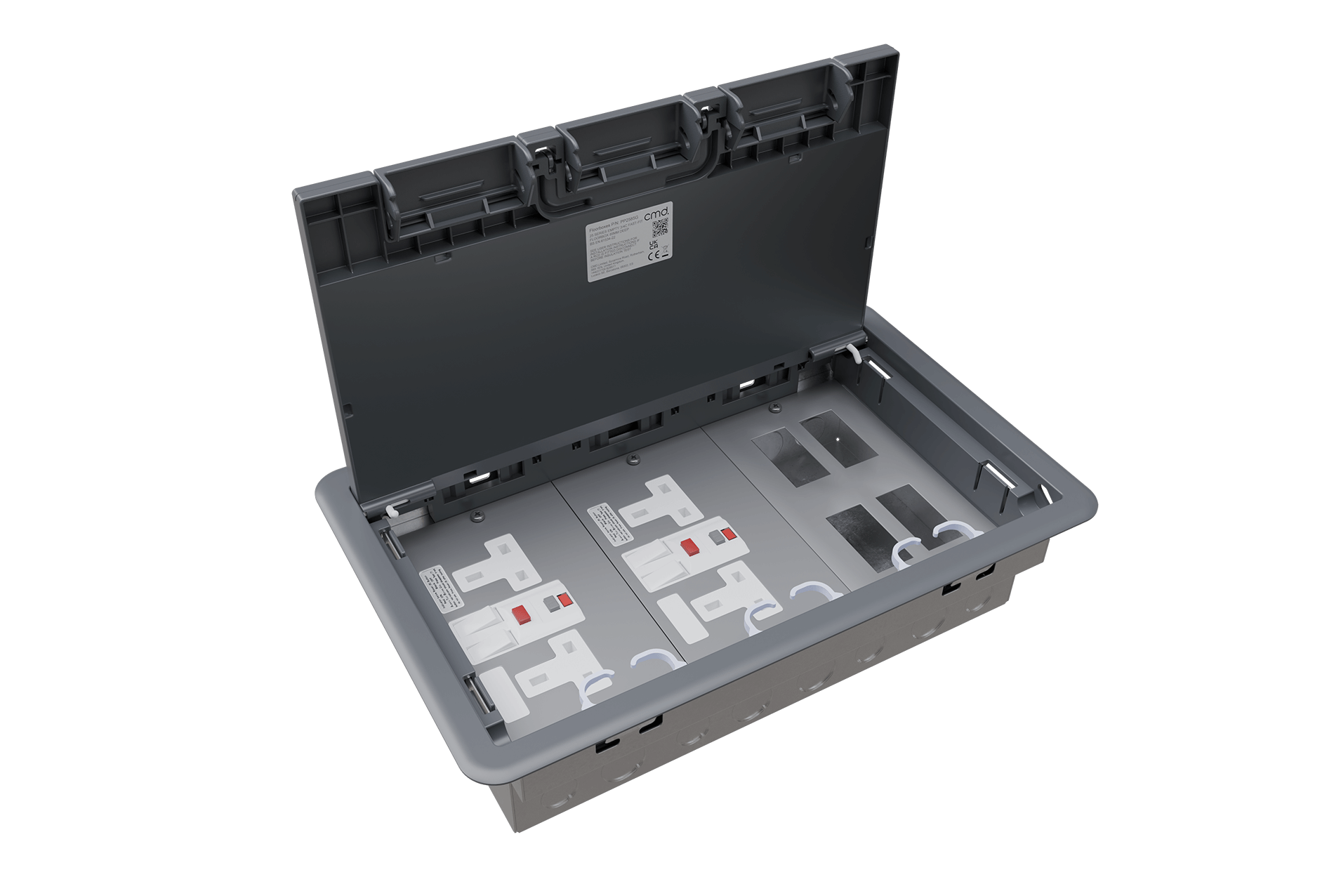

25 Series Floor Box

- Easily swappable lid direction & cable management

- Lockable lid options

- Fast fixture into flooring

Block

FEATURES

- Supplied with dividers to configure into either a 3 or 4 compartment box.
- Simple rectangular 6.5mm recess for carpet.
- A choice of three cable entry points.

- Reversible lid and cable management to aid workplace re-design.
- Robust, auto close metal handle.
- Safe touch, integrated, floor tile fixing barbs for quick and easy installation.

Block

Block

Resources

Our range of technical documents are here to help you specify your next project.

Block

Our range of technical documents are here to help you specify your next project.

DATASHEET

Request a Declaration of Conformity

Installation, User and Care Guide

IMAGES

Block

Ordering

Block

Contour Plastic Power Module

Empty 25A Series Floor Box

UK Code

Colour

Description

PP2585G

Standard ‘Fast-Fit’ 87mm Deep

PBCF4010/SM

Standard ‘Fast-Fit’ 105mm Deep

PBCF4010/SM

Standard ‘Fast-Fit’ 120mm Deep

PBCF4010/SM

Standard ‘Fast-Fit’ 135mm Deep

Add Suffix KL

Option to add a Key Lock to a floor box lid

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

Block

Contour Plastic Power Module

Standard Earth Pre-wired 25A Series Floor Box

c/w 3m or 5m 32A unfused Betatrak Tap-off

UK Code

Colour

Description

3 COMPARTMENT - 3m Standard Earth White Plug, Grey Power Plates

P25385BS3U100

1x Twin 13A Switched Socket

P25385BS3U200

2x Twin 13A Switched Sockets

P25385BS3U101

1x Twin 13A Switched RCD Socket

P25385BS3U201

2x Twin 13A Switched RCD Sockets

3 COMPARTMENT - 5m Standard Earth White Plug, Grey Power Plates

P25385BS5U100

1x Twin 13A Switched Socket

P25385BS5U200

2x Twin 13A Switched Sockets

P25385BS5U101

1x Twin 13A Switched RCD Socket

P25385BS5U201

2x Twin 13A Switched RCD Sockets

4 COMPARTMENT - 3m Standard Earth White Plug, Grey Power Plates

P25485BS3U100

1x Twin 13A Switched Socket

P25485BS3U200

2x Twin 13A Switched Sockets

P25485BS3U101

1x Twin 13A Switched RCD Socket

P25485BS3U201

2x Twin 13A Switched RCD Sockets

4 COMPARTMENT - 5m Standard Earth White Plug, Grey Power Plates

P25485BS5U100

1x Twin 13A Switched Socket

P25485BS5U200

2x Twin 13A Switched Sockets

P25485BS5U101

1x Twin 13A Switched RCD Socket

P25485BS5U201

2x Twin 13A Switched RCD Sockets

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

Block

Contour Plastic Power Module

Clean Earth Pre-wired 25 Series Floor Box

c/w 3m or 5m 32A unfused Betatrak Tap-off

UK Code

Colour

Description

3 COMPARTMENT - 3m Clean Earth Red Plug, Red Power Plates

P25385BC3U100

1x Twin 13A Switched Socket

P25385BC3U200

2x Twin 13A Switched Sockets

P25385BC3U101

1x Twin 13A Switched RCD Socket

P25385BC3U201

2x Twin 13A Switched RCD Sockets

3 COMPARTMENT - 5m Clean Earth Red Plug, Red Power Plates

P25385BC5U100

1x Twin 13A Switched Socket

P25385BC5U200

2x Twin 13A Switched Sockets

P25385BC5U101

1x Twin 13A Switched RCD Socket

P25385BC5U201

2x Twin 13A Switched RCD Sockets

4 COMPARTMENT - 3m Clean Earth Red Plug, Red Power Plates

P25485BC3U100

1x Twin 13A Switched Socket

P25485BC3U200

2x Twin 13A Switched Sockets

P25485BC3U101

1x Twin 13A Switched RCD Socket

P25485BC3U201

2x Twin 13A Switched RCD Sockets

4 COMPARTMENT - 5m Clean Earth Red Plug, Red Power Plates

P25485BC5U100

1x Twin 13A Switched Socket

P25485BC5U200

2x Twin 13A Switched Sockets

P25485BC5U101

1x Twin 13A Switched RCD Socket

P25485BC5U201

2x Twin 13A Switched RCD Sockets

Data Cables

161713

3m Cat 6 data cable. Male to male connector.

161239

2m USB data cable. Male to male connector.

161718

2m HDMI data cable. Male to male connector.

Floorbox

25 Series Floor Box

The 25 Series floor box is suitable for raised floor applications and is divided in to 3 or 4 compartments. The 25 Series floor boxes are designed for use in commercial environments and provide an efficient fast-fit on site installation and ease of access to power sockets and data.
