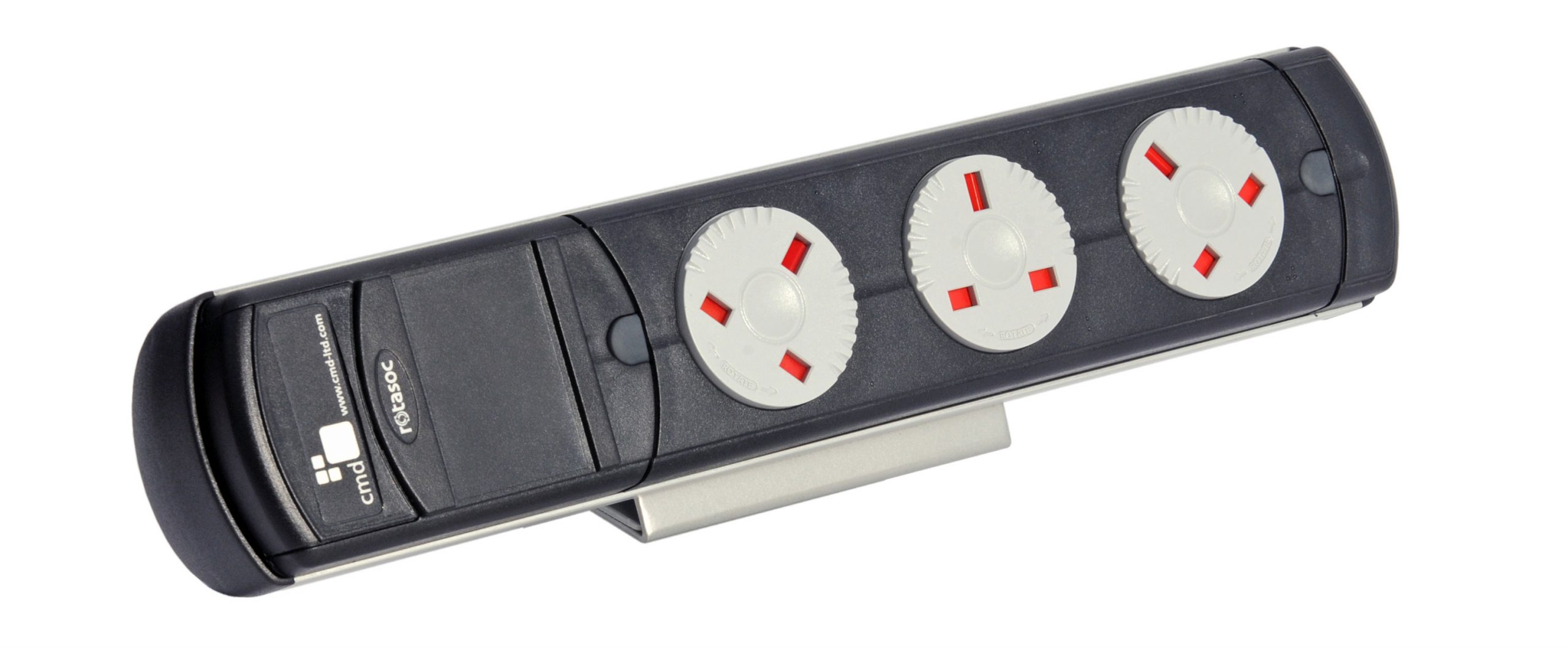

Rotasoc (16A desktop version)

Features and Benefits

  • 16A desk top Rotasoc is available with a 3 metre power lead to 13A plug or a 1 metre cable to an interconnection module to plug into an under desk Rotasoc unit output.
  • Fully rotatable sockets
  • Integrated power and data
  • Standard, low noise/clean earth and dual circuit options
  • Easily connects to Rotasoc under desk configurations
  • Choice of 2, 3 or 4 socket options that rotate 360º
  • Available as either a horizontal or vertical desk module

Product information

Rotasoc is the industry of standard modular power system.

16A Rotasoc On Desk Power Module is available with a 3 metre power lead to 13A plug or a 1 metre cable to an interconnection module to plug into an under desk Rotasoc unit output.



Product Options

  • Rotasoc includes a comprehensive selection of multi socket power and data modules with fully rotating sockets, available in 16A  on desk version
  • Available in black or white
  • Horizontal or vertical module orientation



Fixing

  • C-Clamp
  • The vertical socket modules can be connected to the desk using a through desk M10 fixing bolt, which is not supplied



Safety



Notes

  • Cables: White and grey modules are supplied with white cables and black modules are supplied with black cables.
  • Data Cables: CMD cannot accept any responsibility or liability for providing category 6 performance in products supplied. CMD cannot accept any responsibility or liability for providing HDMI performance in products supplied over 5m in length.
  • Fuses: Only accessible after removal of equipment plug.
  • Lead Lengths: All lead lengths are approximate and subject to tolerance. Lead lengths shown will be the conductor length and not the distance from the end of the module to the plug. For example, a 3m prewired power lead will be approximately 2.875m as 125mm will be internal for the termination. This is also applicable for data leads.
  • Data fascias may be subject to colour change.

Standard Products

UK Code Schuko Code Colour Description
Horizontal Module
RAK001 2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAK002 3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAK003 4 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAK010 2 Gang Non-fused Socket Module Black Body Grey Sockets
RAK011 3 Gang Non-fused Socket Module Black Body Grey Sockets
RAK012 4 Gang Non-fused Socket Module Black Body Grey Sockets
RAK020 2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAK021 3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAK022 4 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAK030 2 Gang Non-fused Socket Module Black Body Grey Sockets
RAK031 3 Gang Non-fused Socket Module Black Body Grey Sockets
RAK032 4 Gang Non-fused Socket Module Black Body Grey Sockets
Vertical Module
RAL003 2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAL002 3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAL005 2 Gang Non-fused Socket Module Black Body Grey Sockets
RAL006 3 Gang Non-fused Socket Module Black Body Grey Sockets
RAL001 2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAL004 3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets
RAL012 2 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets
RAL011 3 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets
RAL014 2 Gang Non-fused Socket Module Black Body Red Sockets
RAL015 3 Gang Non-fused Socket Module Black Body Red Sockets
RAL010 2 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets
RAL013 3 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets

UK Part Number: Horizontal Module

2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAK001

3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAK002

4 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAK003

2 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAK010

3 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAK011

4 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAK012

2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAK020

3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAK021

4 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAK022

2 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAK030

3 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAK031

4 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAK032

UK Part Number: Vertical Module

2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAL003

3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAL002

2 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAL005

3 Gang Non-fused Socket Module Black Body Grey Sockets

UK Part Number: RAL006

2 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAL001

3 Gang 3.15A Individually Fused Socket Module Black Body Grey Sockets

UK Part Number: RAL004

2 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets

UK Part Number: RAL012

3 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets

UK Part Number: RAL011

2 Gang Non-fused Socket Module Black Body Red Sockets

UK Part Number: RAL014

3 Gang Non-fused Socket Module Black Body Red Sockets

UK Part Number: RAL015

2 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets

UK Part Number: RAL010

3 Gang 3.15A Individually Fused Socket Module Black Body Red Sockets

UK Part Number: RAL013
